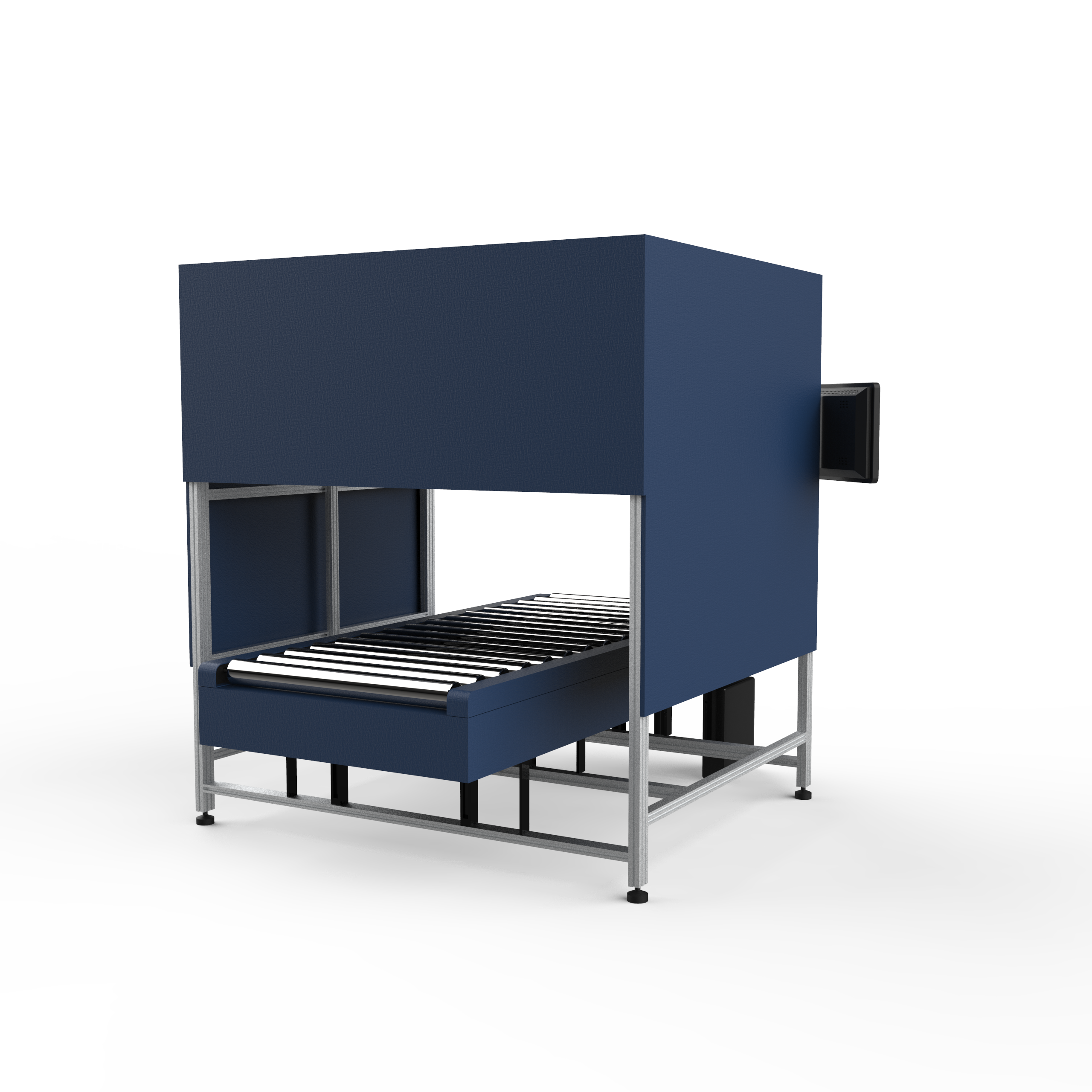

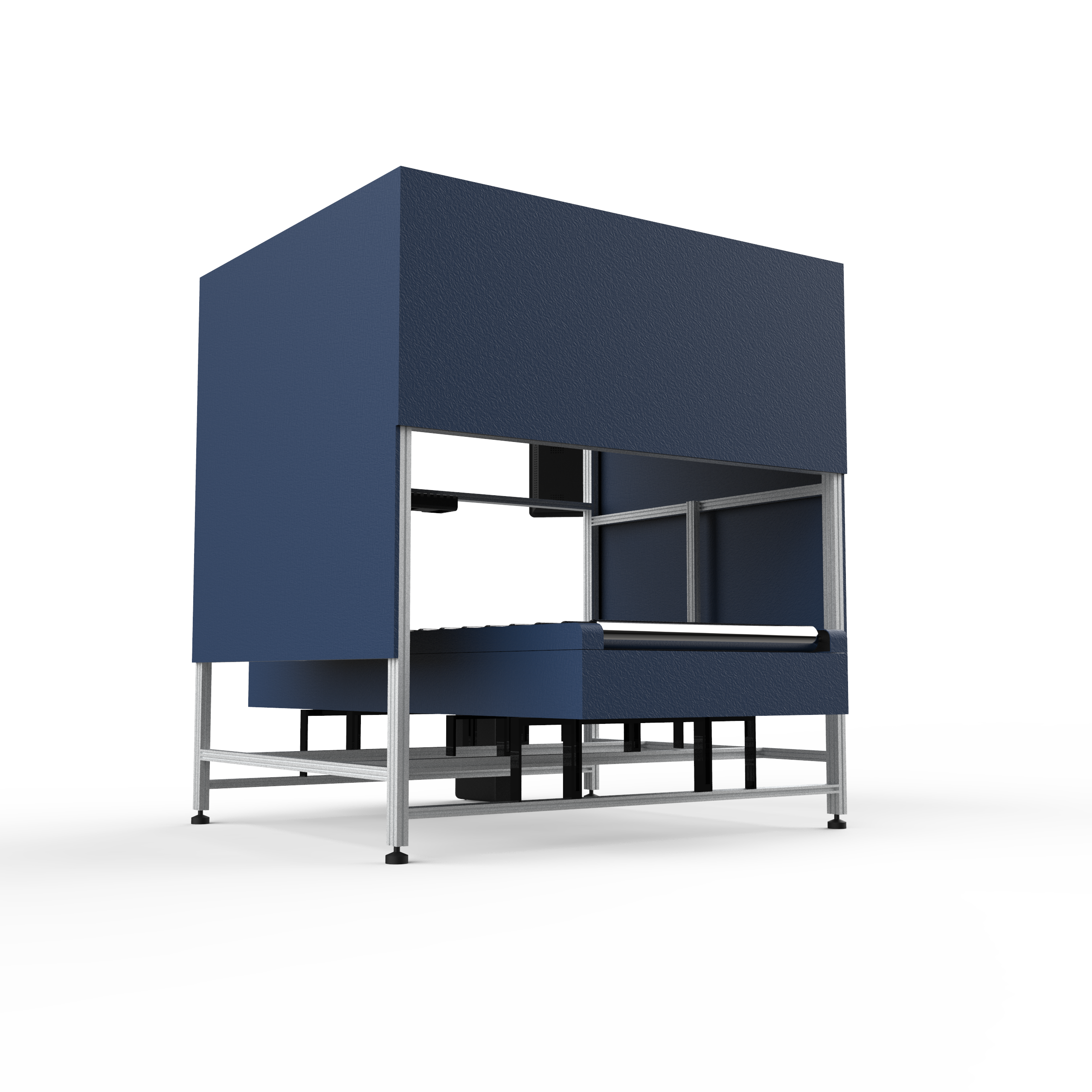

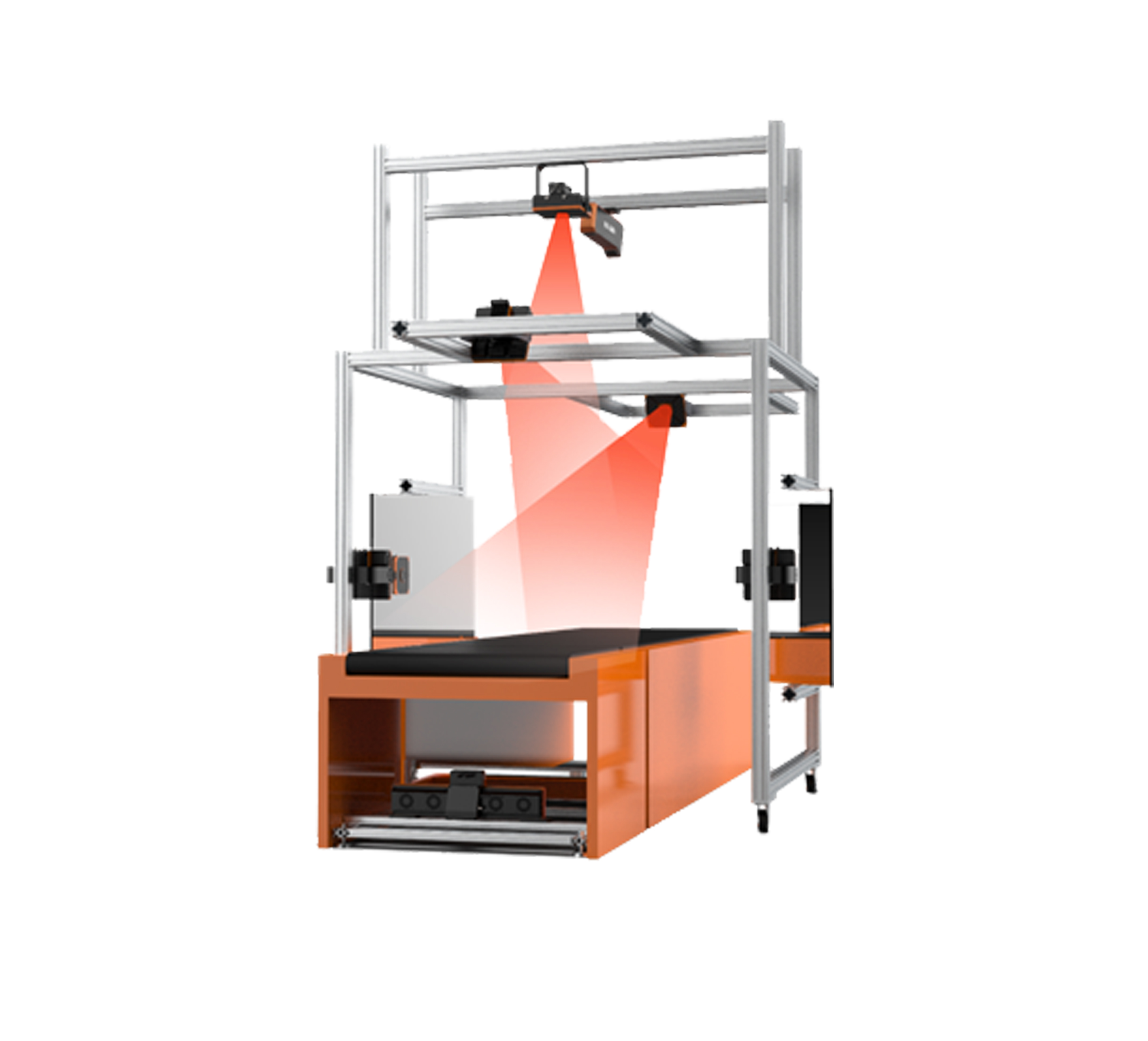

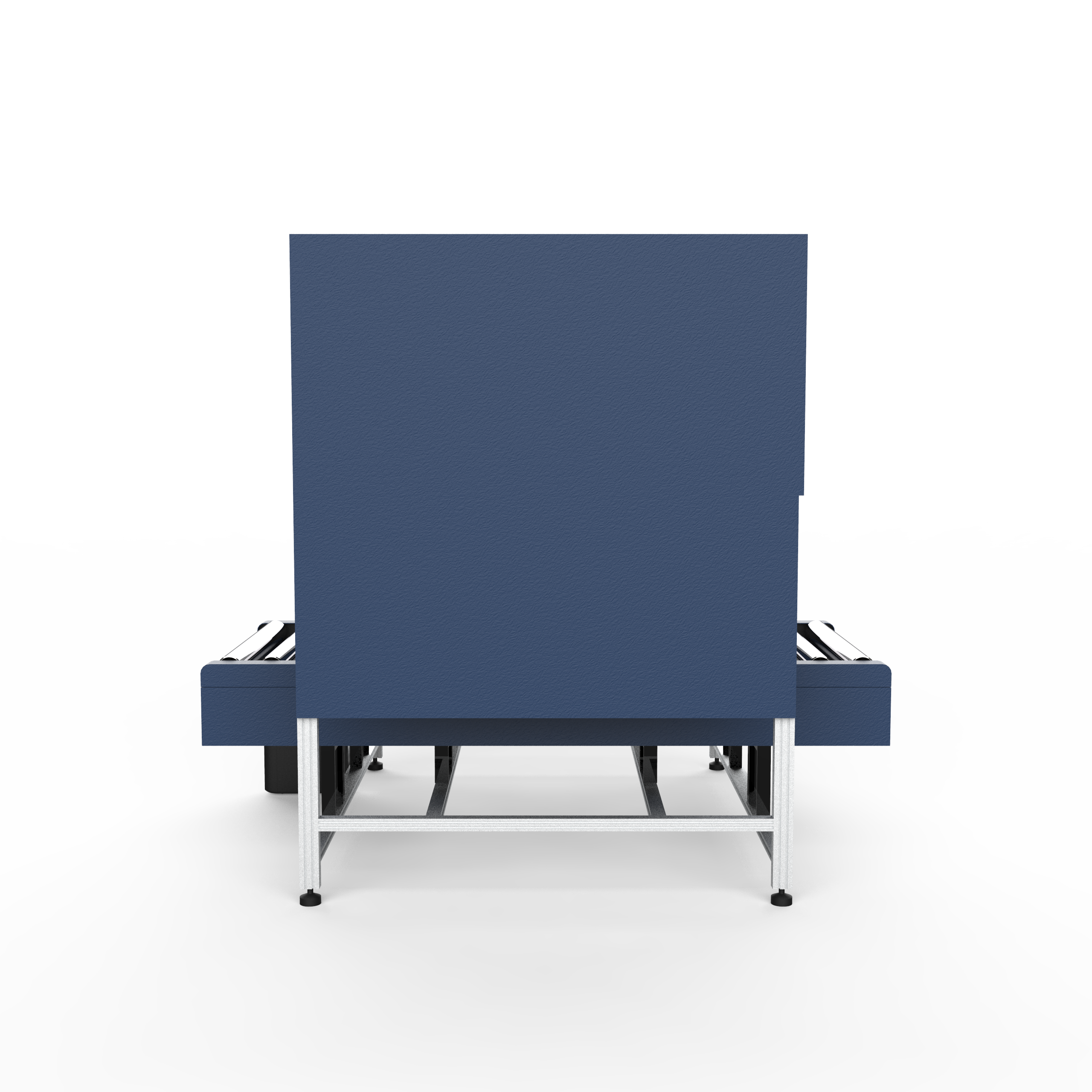

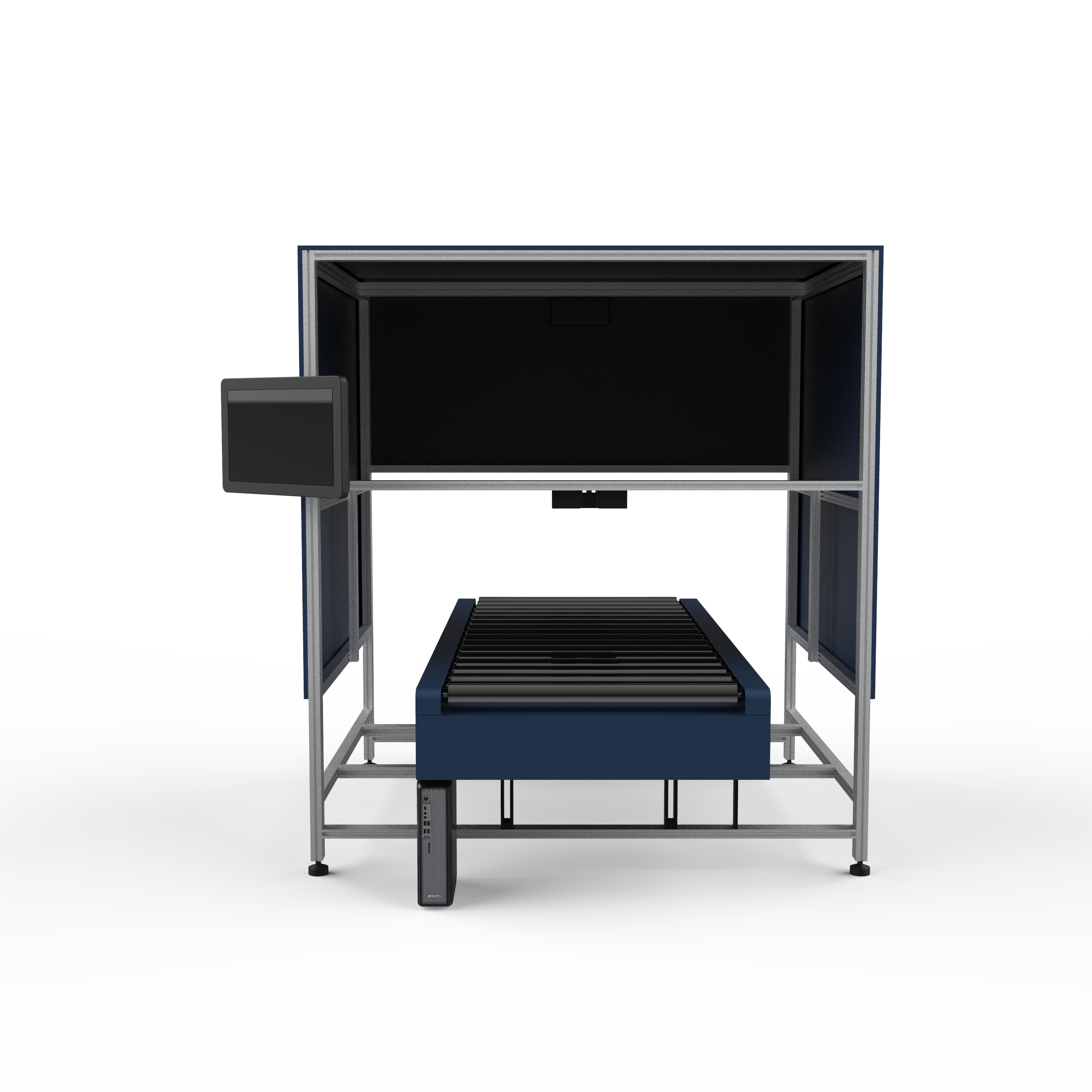

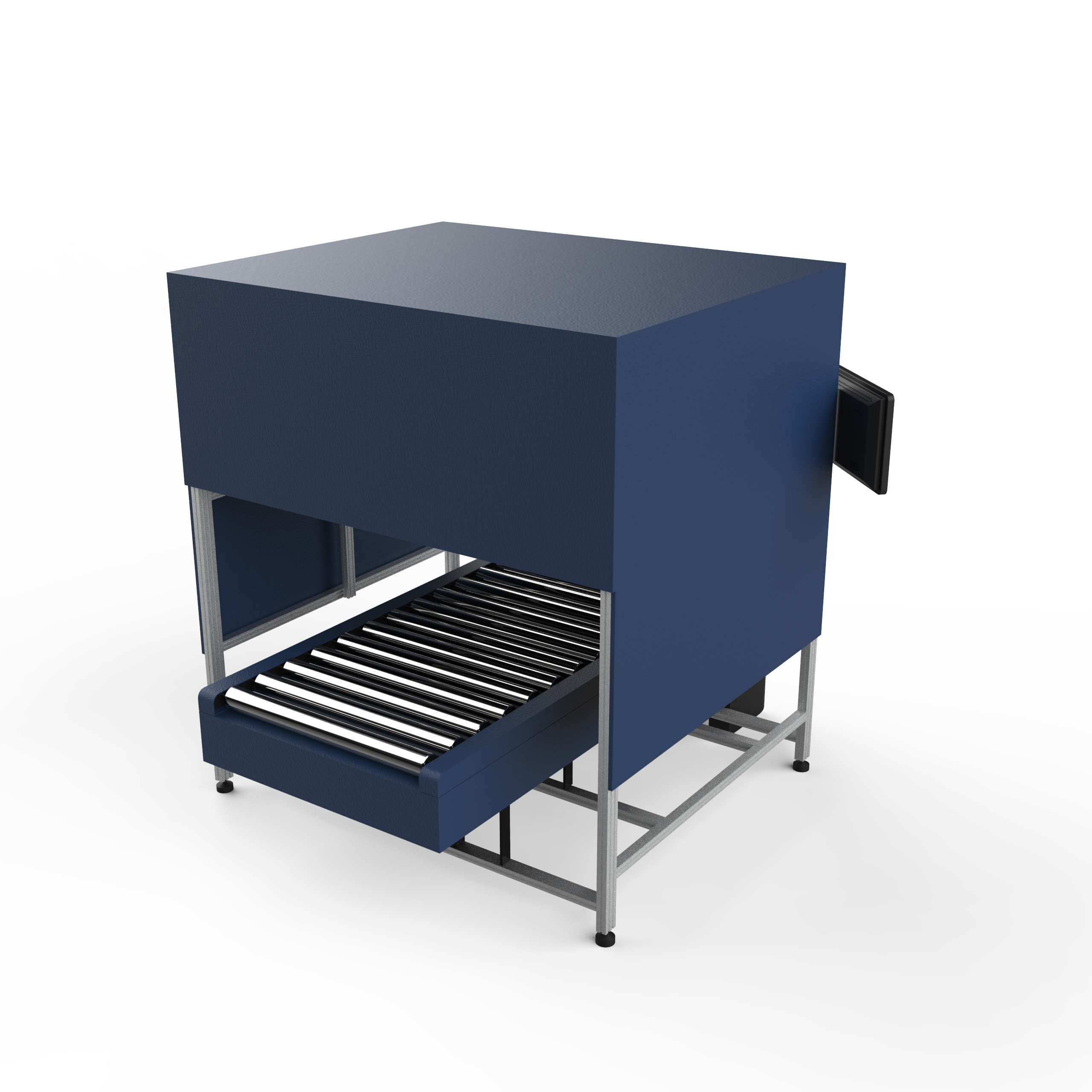

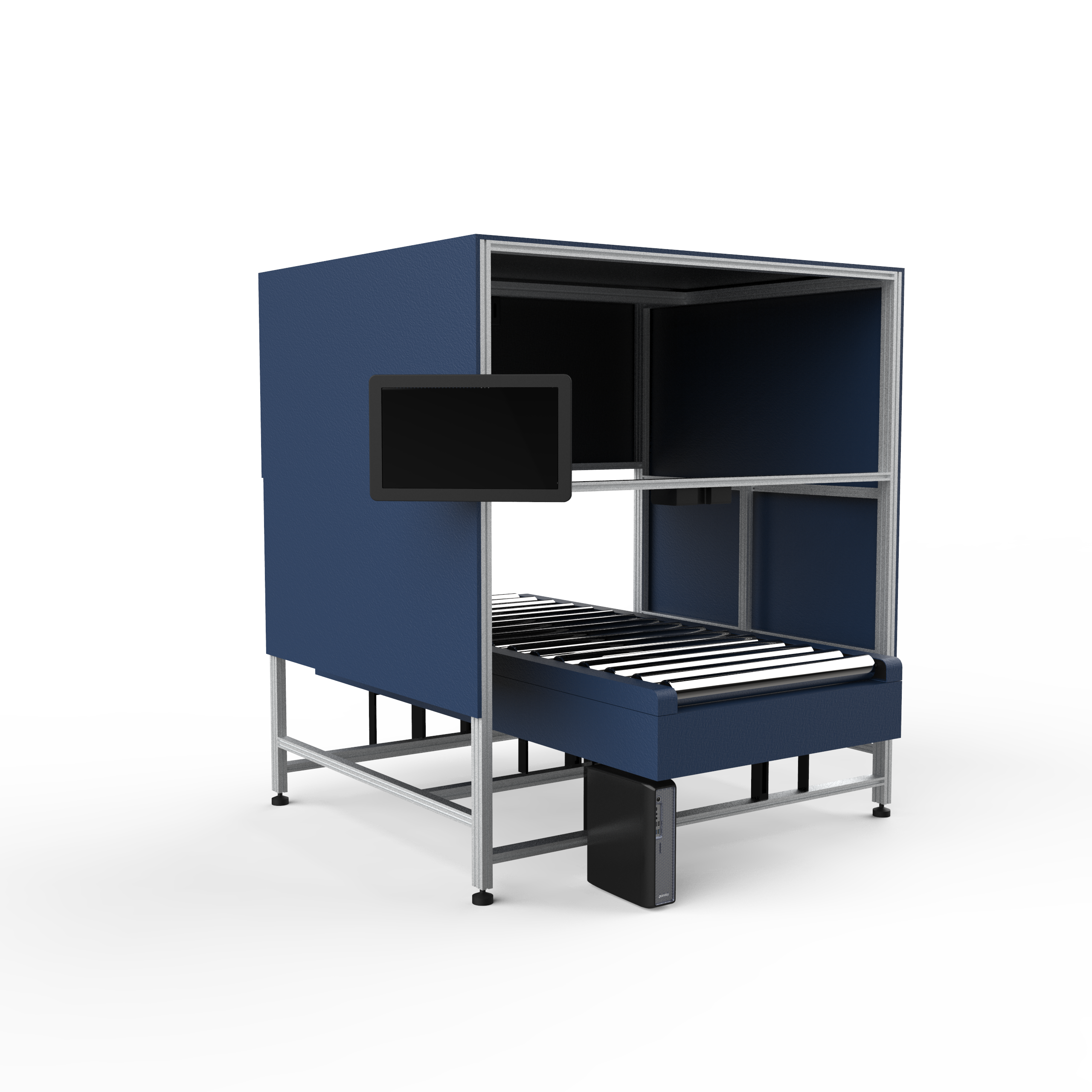

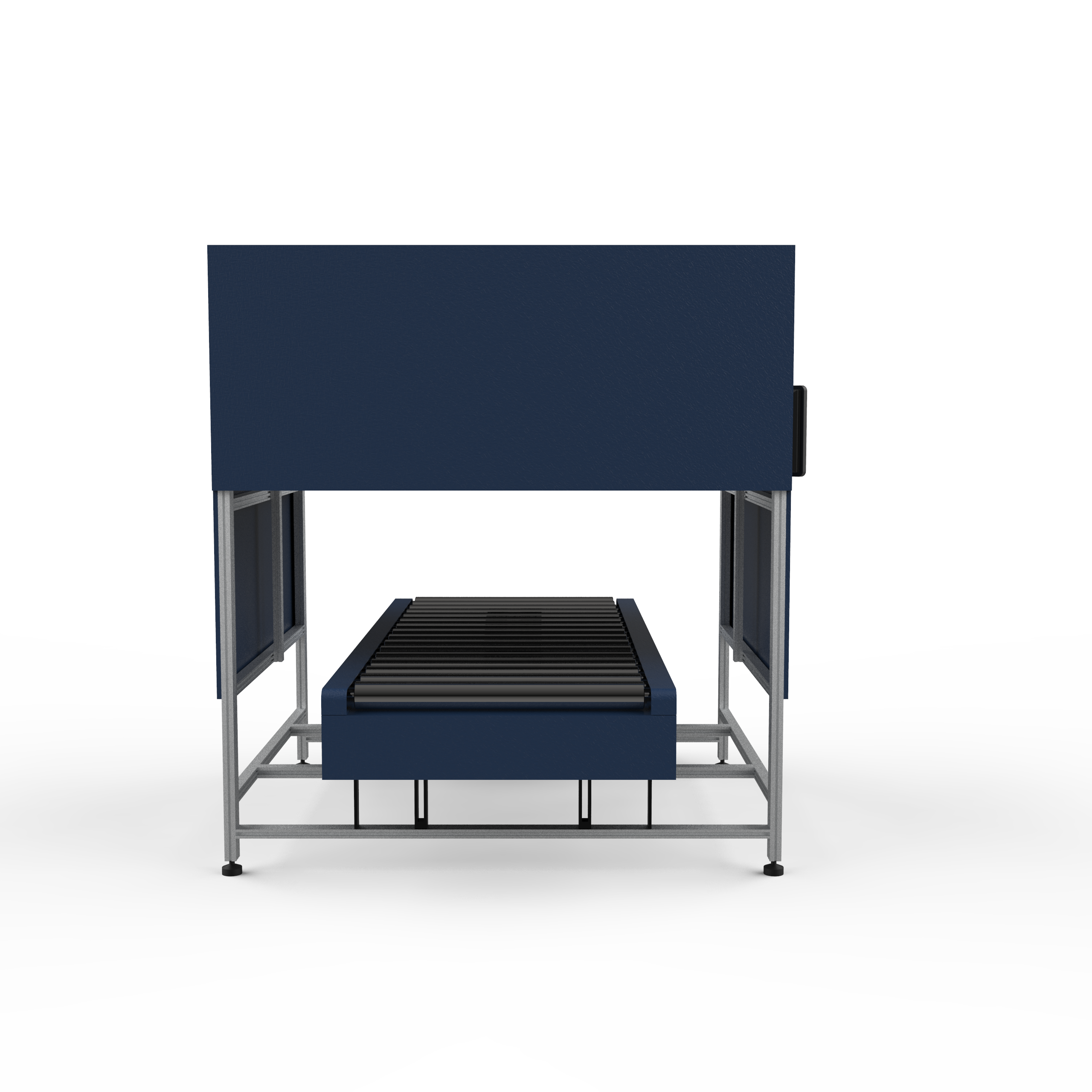

The six-sided scanning is an allround visual information collection method to ensure the sixsided barcode reading function of single-ticket goods on the goods assembly line. The six-sided scanning information collection system can read the barcode automatically and integrate the barcode information with the express operation system and, at the same time, give the sorting information to th backend balance wheel sorting system. The balance wheel sorting system processes the sorting information from the frontend sixsided scanning information collection and sorts the goods into the corresponding compartments, thus saving labor and speeding up sorting efficiency.
Performance characteristics
☆ Collects volume data to protect the value of dimension Weight.
☆ The automatic code reading rate is more than 99%, and bar code abnormalities can be processed manually.
☆ It can be placed before or after the sorting matrix.
☆ Automated scanning, weighing and volume measurement can increase the efficiency of the operation to a large extent.
☆ The volume and weight information can be collected in real time, which can be used to calculate the capacity of the transfer vehicle and realize the digitization of the information.
Technical parameter
Reading rate | 99.9999 % |
Sorting efficiency | 3600 pieces/hour |
Bar code accuracy | 10 mil |
Belt Speed | 1.5m/s ~ 2m/s |
Belt width | 1000mm (can be customized) |
