Brand MonolithIoT
Series Smart Weighing
Consult immediately
Detail

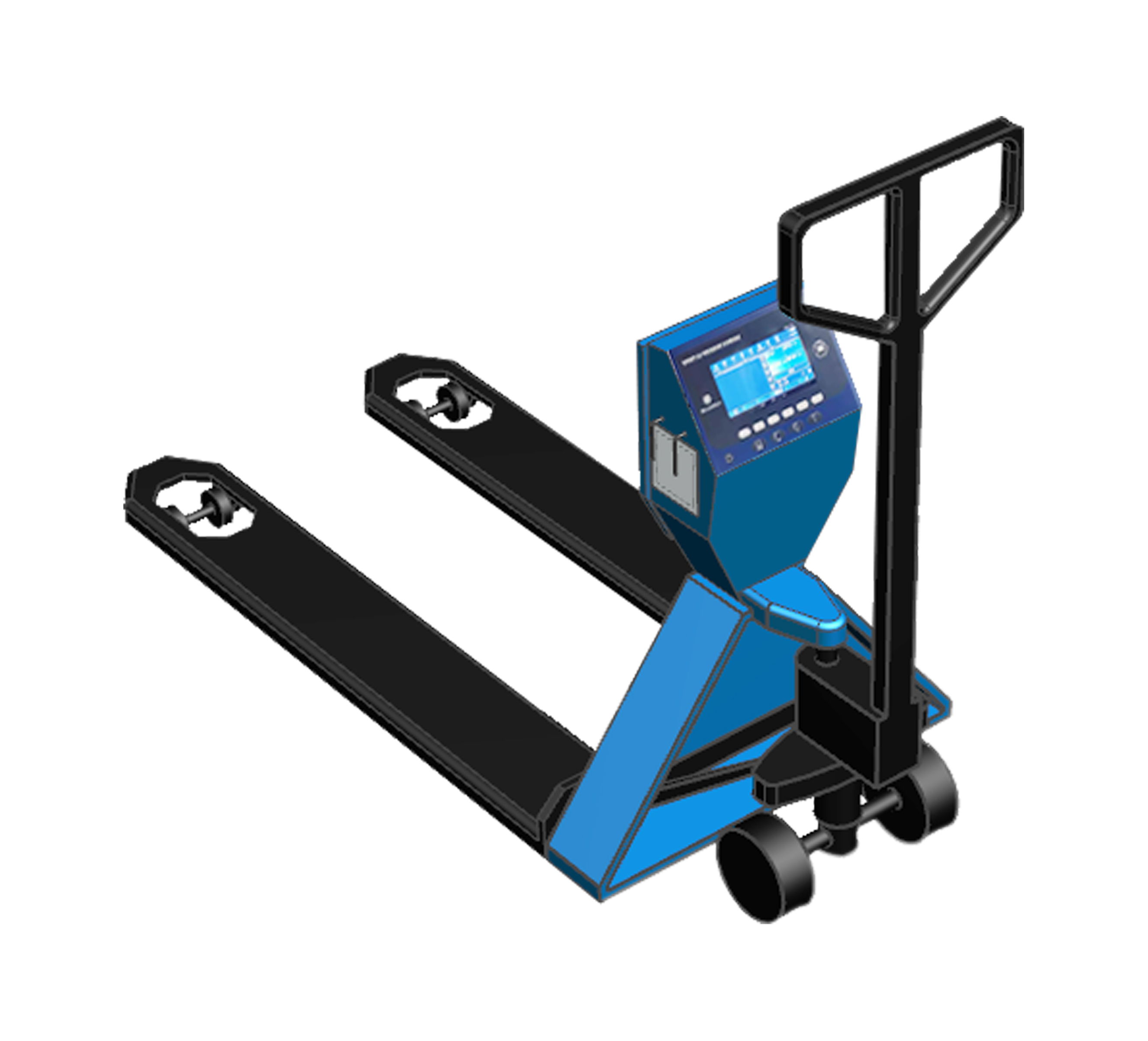

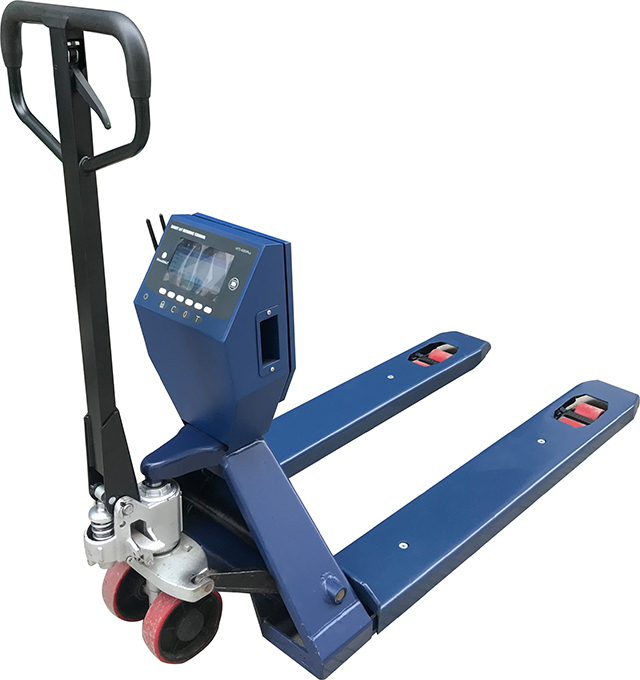

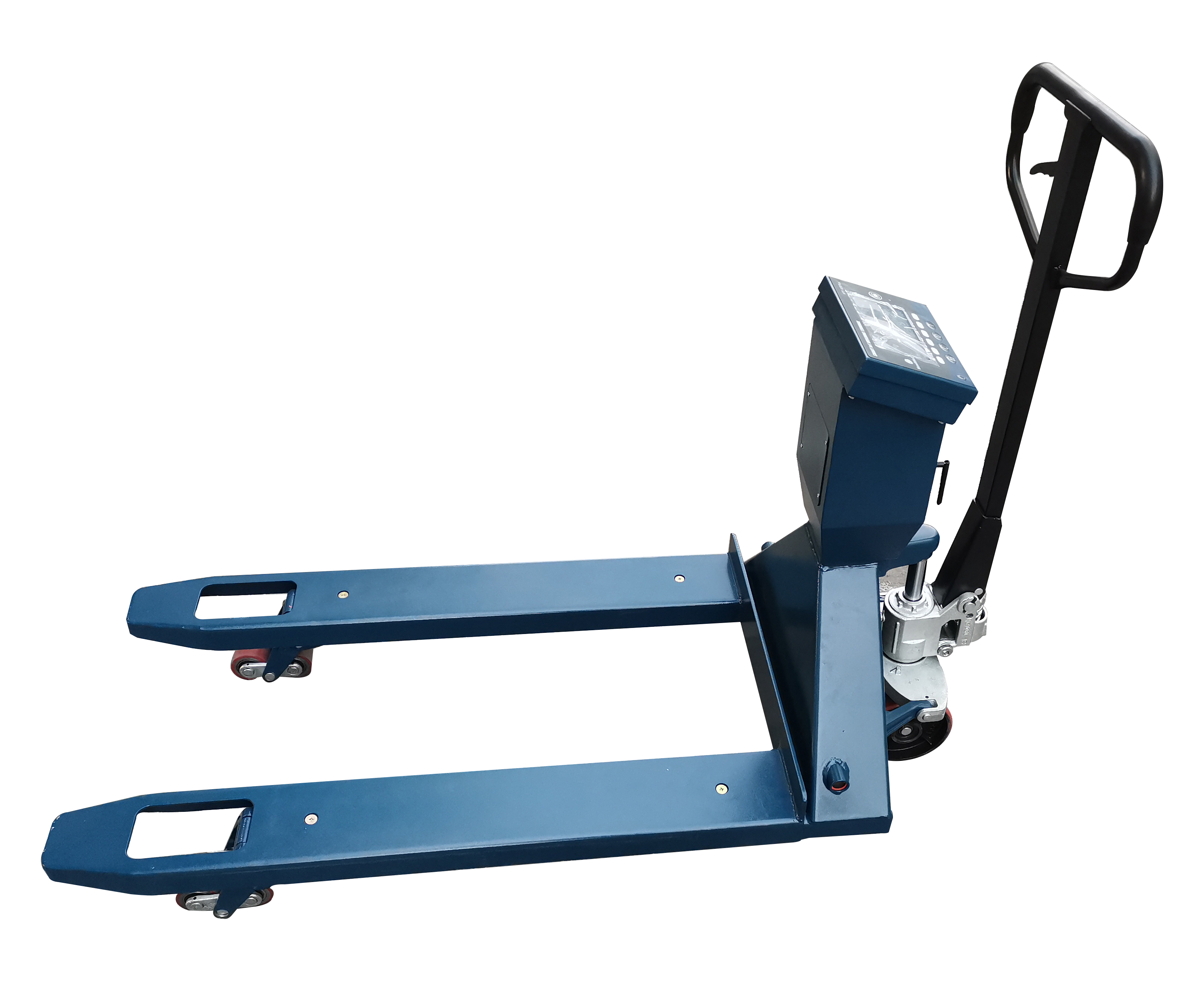

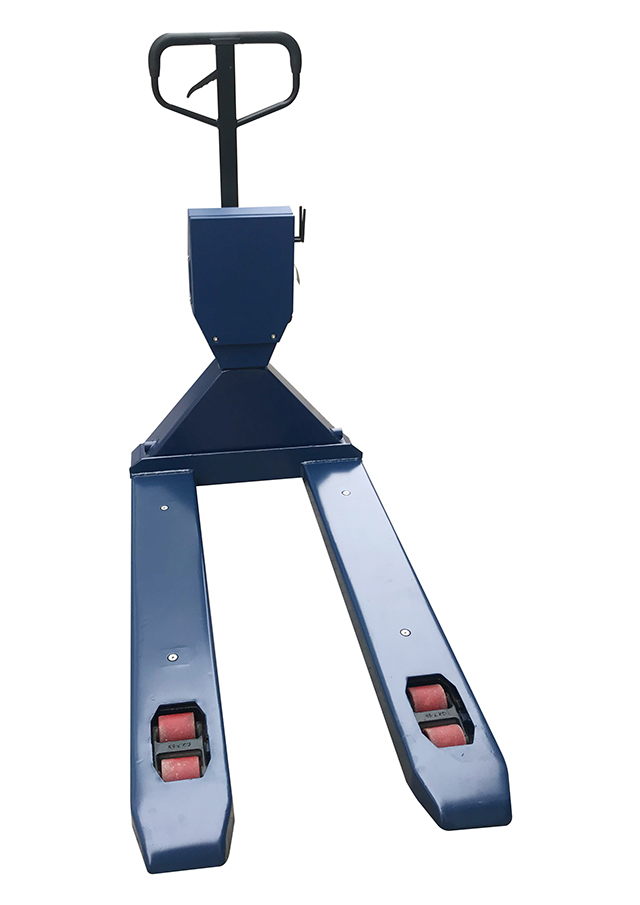

Intelligent manual Pallet truck scales adopt our high-end intelligent Internet of things weighing instrument MTS-6000PLUS adding high precision load cell on the basis of manual hydraulic lift truck to form a reliable and efficient intelligent weighing system.

Pallet truck scales are precise, sturdy, fast, easy and provide high accuracy for pallet and container weighing. It can be widely used in storage, express delivery, logistics and other industries for the barcode weight and volume information of goods and is applicable to all kinds of heavy weights. It is easy to move, ensures automatically saved upload of measurement data, reduces human error, costs, and improves efficiency.

Pallet truck scales are suitable for the loading and unloading of automobiles and the loading and unloading of flammable, explosive and fire-prohibited goods in workshops, warehouses, docks, stations, freight yards, etc. The use of forklift electronic scales can improve efficiency and accuracy of measurement and management. The use of Pallet truck scales can improve the efficiency and accuracy of measurement management.

Easy to use: No plugging in the use of a single charge for a week continuously.

Economical: One machine with two uses, it is both a mobile forklift and a floor scale, greatly saves enterprise production costs.

It can also be used as a weighing scale that can be used to weigh and carry forklifts at the same time and can display the standard weight by pressing the handle easily.

Save: Save the intermediate steps, mobile weighing directly, twice the speed of traditional weighing, save labor.


Technical parameter

Dimensions

Polyurethane wheels (PU)

Wheel size, drive side



180mm × 50mm

Wheel size, load side



φ80 × 70mm

Rear wheelbase



340 – 390mm

Lifting height

110mm

Overall height

1200mm (with an operating handle)

Overall length

1540 – 1600mm

Length of vehicle

1450 – 1510mm

Overall width

560mm (narrow cross); 690mm (Wide forklift)

Min flank height

85mm

Width

1900mm

Min turning radius

≤1640mm 585mm x 178mm x 130mm
